Microphone accessories for professional decibel level recording and noise monitoring - available for the iPhone, iPad and iPod touch.  Designed to work with the AudioTools iOS app

Available to buy in the UK and across the EU

01223 441671

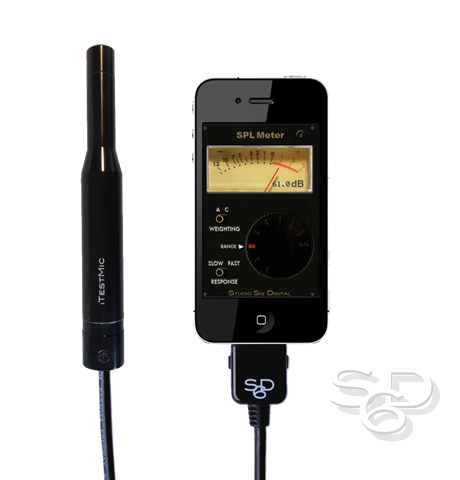

iTestMic by Studio6Digital

iTestMic is the most affordable way to have a calibrated SPL Meter, RTA, FFT analyzer and more.  Plug it into your iPhone, iPod touch, or iPad to get a mobile professional test & measurement system.

Works with the AudioTools app

£99 £185 incl VAT  SOLD OUT

Email / Call on 01223 441671

Please contact us for UK next-day delivery or EU delivery options.

Compatible with iOS devices

iTestMic is the equivalent to having a professional Type-2 class measurement microphone that works with:

Compatibility (Lightning model):

iPhone 5, 5C, 5S (6 and 6 Plus approval pending), iPad Mini, iPad Air, iPod Touch 5.

High quality specs

  • 28 dBA - 120 dBA performance in two ranges: 28-105 dBA, and 48-120 dBA dynamic range
  • Mono signal, present at both Left and Right iOS device input channels
  • Excellent immunity to cell phone RF noise
  • Factory calibration stored internally, from a 94.0 dB pressure-compensated calibrator.

Add-on what you need

The AudioTools app includes everything you need for measuring sound levels including spectrum analysis and FFT.  Upgrade your app with extra modules when you need them.

Click here to view all the modules included with the AudioTools app

Wireless capable

Use iTestMic with the AudioTools Wireless app for remotely sending microphone audio to AudioTools running on another iOS device.

Download audio and data files easily through a web browser using any computer connected to the same network.  Alternatively, download using Apple's iTunes software.

Calibrated for accuracy

When you plug iTestMic into any iOS device running AudioTools, the factory calibration values are read and applied, giving you an instantly available accurate SPL measurement tool calibrated to +/-0.1 dB, no matter what iOS device you are using.

iTestMic meets ANSI / ISO Type 2 specifications for frequency response, linearity, and directional characteristics.  Studio6Digital do not guarantee that this microphone can meet the strict environmental requirements of Type 2 or Type 1.

  • Omnidirectional pattern
  • 20Hz - 20kHz +/- 3dB
  • 1/2" nominal size, fits all standard calibrators

Powered by your device

An external power supply is not necessary to use the iTestMic.  It will run from the battery of the iDevice that it is connected to.  There is currently no option for connecting to external power with the Lightning model.

This device consumes less than 50ma when in use.

  • 1.0m (37”) cable length (Lightning)
